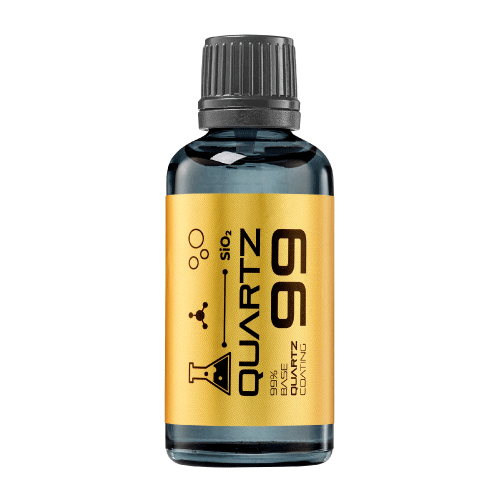

QUARTZ99. Layerable quartz base coat

QUARTZ99 must be applied by a NANOLAB Certified Installer Only!

Pre-Application Preparation: Ensure a pristine surface by thoroughly polishing and removing any traces of oil, grease, fat, fingerprints, etc., using our recommended PREP solution.

Tools Required: In addition to the coating material, prepare an applicator pad and two microfiber towels. Opt for towels of different colors if possible for better organization.

Application Method:
Apply on small areas such as: 1 door, 1/2 hood etc.
Apply in an air-conditioned area with low temperature and low humidity
Do not apply in a direct wind area

1. Apply an adequate amount of the coating material onto the applicator pad, ensuring it’s sufficiently primed for even distribution. If the applicator feels “stuck”, apply more material as needed.
2. Commence by outlining the area for application, starting from the surface edges. Then, create a central X shape to facilitate uniform coverage.
3. Employ crisscross motions to spread the material along the X and Y axes, ensuring thorough coverage.

Buffing Phase: To promote strong adhesion, refrain from wiping the coating immediately post-application. Allow it to haze over or display the rainbow effect before proceeding. Use the first towel to swiftly remove excess material in straight lines; speed is key at this stage, with no need for perfection. Subsequently, utilize the second towel to buff the surface in circular motions, ensuring no high spots remain.

Curing Times:
Tack-Free / Top-Coat: 40 Minutes
Initial Curing: 6 hours
First Wash: As Recommended For The Top-Coat
Full Curing: 14 days

NANOLAB QUARTZ99. has a shelf life of at least 12 months when stored between 0°C / 32°F and 25°C / 77°F in the tightly closed original container.
After opening – must be used within 180 days.

Storage beyond the date specified on the label does not necessarily mean that the product is no longer usable.
In this case however, the properties required for the intended use must be checked for quality assurance reasons.

QUARTZ99: limited warranty for the lifetime of the vehicle and originally coated surface. Certified installation and documented annual professional maintenance are required, subject to mandatory local law and the full warranty terms in eight languages.

Attend service every 12 months, within 30 days before or after the installation anniversary. Six-month care is recommended for severe exposure. Routine service is chargeable at the workshop price disclosed in advance.

1. Wash with suitable pH-neutral shampoo and clean, soft tools; dry carefully.
2. Safely decontaminate as needed. Clay or other mechanical treatment is not mandatory and should be chosen by a competent installer only when necessary.
3. Inspect and record the condition before applying a booster or top coat. Keep the invoice, photos where relevant, and service record.
4. Apply a compatible maintenance product only when needed. A maintenance spray does not restart the warranty.

QUARTZ99 is a non-hydrophobic permanent physical base layer. Loss of water beading alone is not a base-layer defect. Maintain the compatible top coat under its own instructions; there is no automatic annual requirement to remove or replace a sound QUARTZ99 base layer.

Approved coating repairs include necessary local preparation, material and installer labour at no charge. Scratches, stone chips, accidents, substrate defects and contamination damage are excluded as set out in the terms. Statutory rights remain unaffected.

Download NANOLAB QUARTZ99. MSDS
